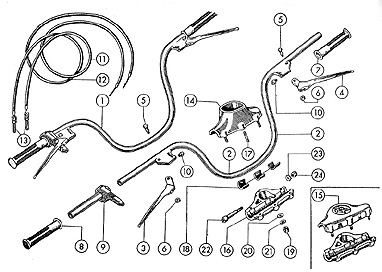

Handle Bar and Control Group (Table 2)

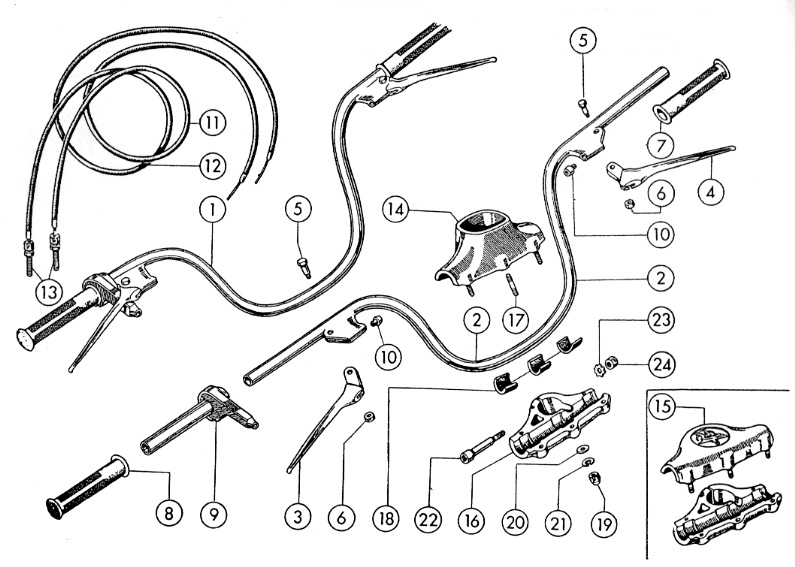

- click here for a larger image of the exploded diagram (above) -
When ordering or referring to these parts, make sure to mention the part & table number

Legend
Number
Part
Reference No.
Number
of pieces
Part Description
1
12114
1
Handle bar tube (part of "handlebar set" legend #'s 1-9)
2
12114
1
Handle bar tube (part of "handlebar set" legend #'s 1-9)
3
12114
1
Front break lever (part of "handlebar set" legend #'s 1-9)
4
12114
1
Clutch lever (part of "handlebar set" legend #'s 1-9)
5
12114
2
Lever locking screws (part of "handlebar set" legend #'s 1-9)
6
12114
2
Lever locking nuts (part of "handlebar set" legend #'s 1-9)
7
12114
1
Rubber handle bar grip clutch side (part of "handlebar set" legend #'s 1-9)
8
12114
1
Rubber handle bar grip accelerator side (part of "handlebar set" legend #'s 1-9)
9
12114
1
Throttle control (part of "handlebar set" legend #'s 1-9)
10
9622 / 160
2
Sheath end socket
11
12220
1
Cable with guide for front brake
12
12221
1
Cable with guide for clutch
13
74 / 459
2
Nipples for adjusting clutch and front brake
14
12856
1
Handle bar support cover (with speedometer)
15
12106
1
Top handle bar support cover (without speedometer)
16
12105
1
Handle bar lower support
17
12110
5
Studs for handle bar support
18
12219
6
Packing rubber for handle bar support
19
56 / 340
5
Nuts for handle bar support studs
20
66 / 410
5
Cut washer for same
21
9872
5
Spring washer for same
22
12143
1
Clamping bolt for locking handle bar
23
12173
1
Toothead lockwasher for same
24
9822
1
External nut for same
